PTL0102 Deluxe 12V Rectangular Low Profile Submersible LED Trailer Light Kit Stop/Turn/Tail Lights - case of 12

Need only one? Find us on Amazon.

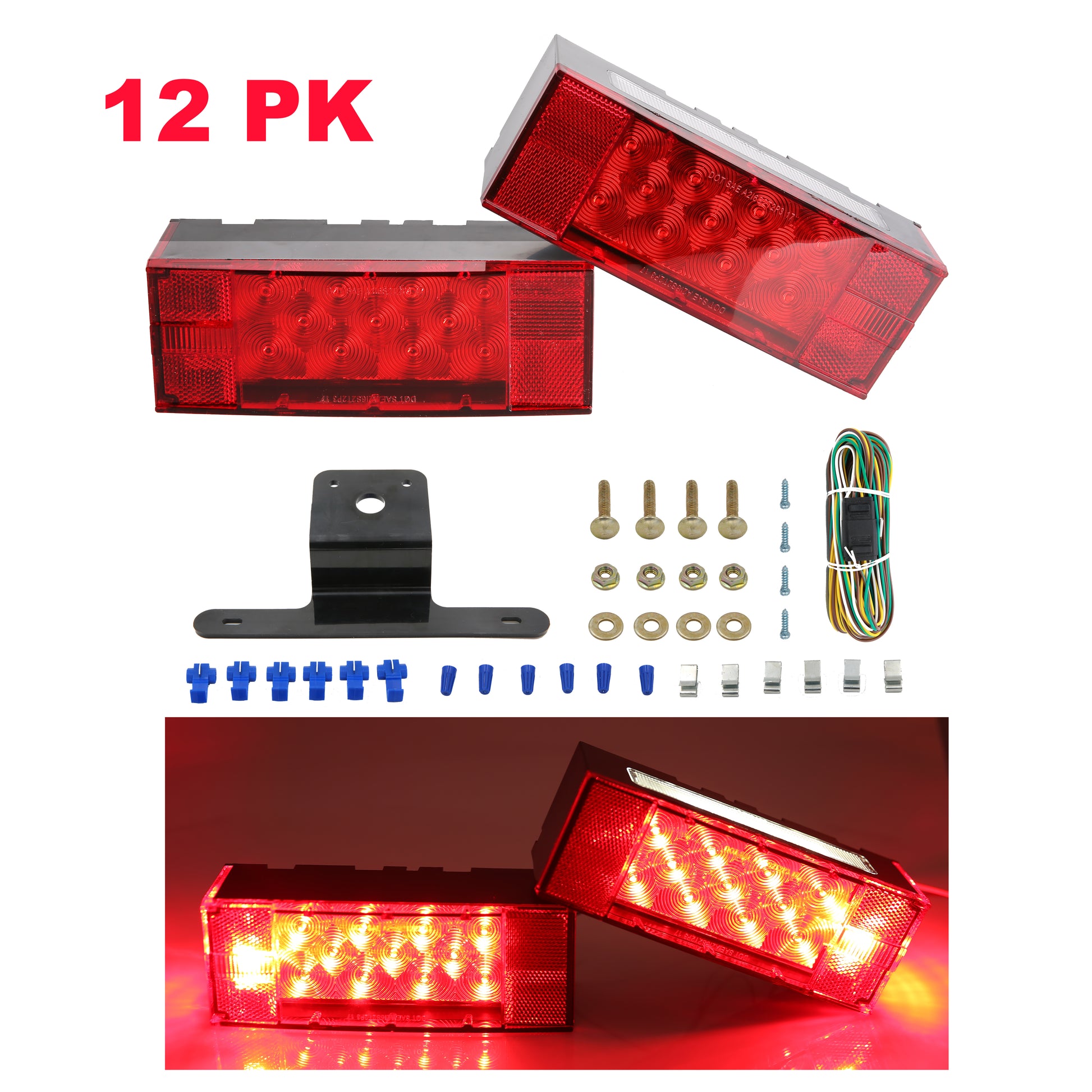

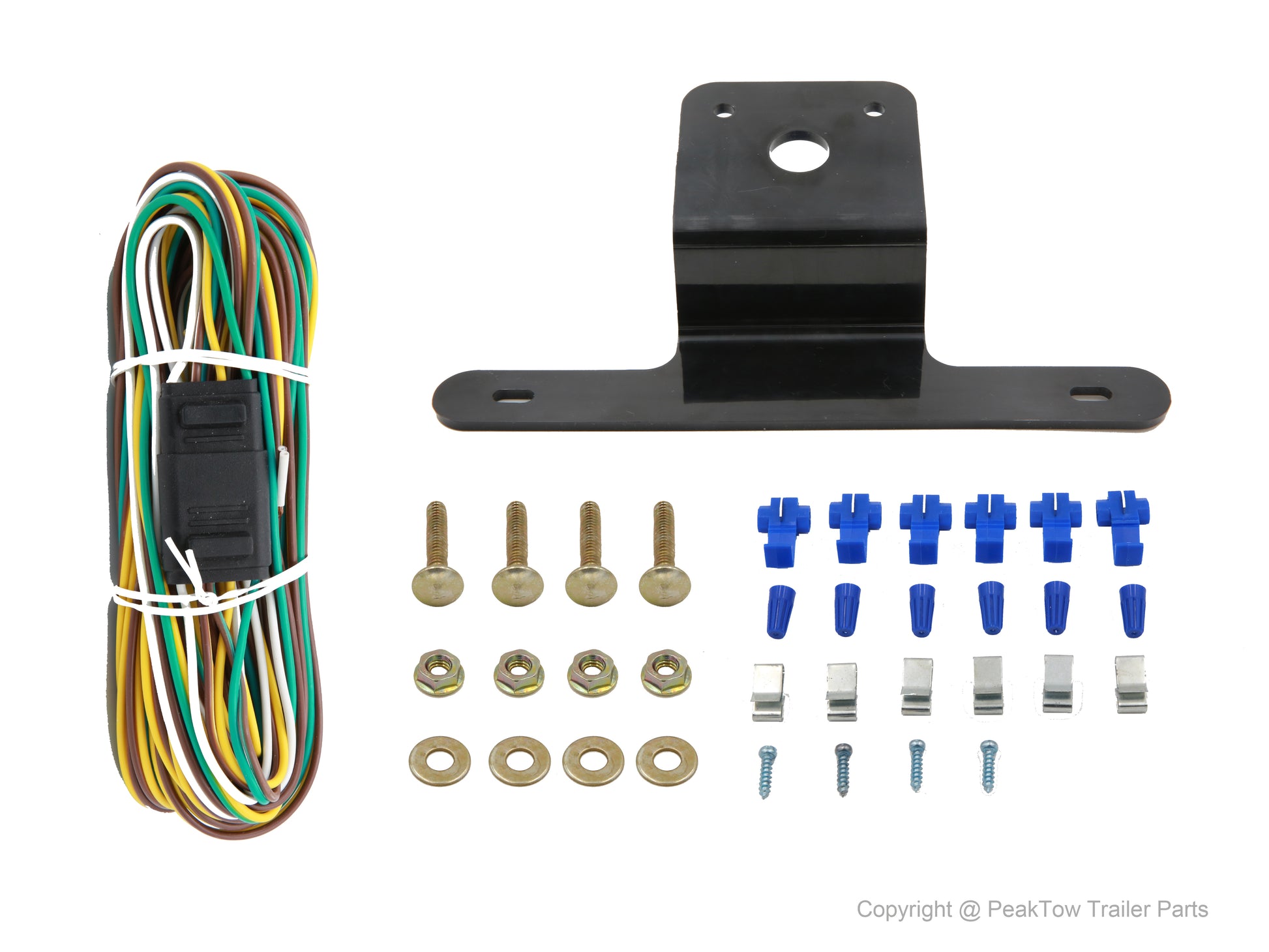

Case of 12 light kits. Each kit includes: 2-Stop/Turn/Tail lights, 26ft 4-pole color coded wiring harness, license plate bracket, and mounting hardware.

FEATURES:

• DOT compliant

• 18+12 SMD LED lens which gives even better performance than traditional eagle eye LED, extremely bright

• Waterproof and submersible (tested before shipment)

• Compatibility: 12V trucks, trailer, boat trailer, travel trailer, camper, RV, and motorhome

• No screws on the surface, totally sonically sealed, no rust risk in the future

• Automatic modular production without hand placing and welding diodes improves quality

• Low consumption, high energy, long life

• Great for marine or trailer applications

• Withstand vibration, wet conditions, movement

Light kits are for trailers over and under 80 inches in width. All Reflectors are made of Canadian mold (super bright).

• 3 wires connection system for each light

• Yellow wire: driver side stop/turn signal

• Green wire: passenger side stop/turn signal. Brown wire: tail lamp, marker, clearance & license

• White wire: ground (not applicable to lights are self-grounding)


Testing procedure: 10 lights placed underwater for 3 hours, 3 times each day for a total of 7 days. All the results are positive. The lights are 100% waterproof and submersible.

Please ensure wires connect properly and no electronic short before marine and underwater usage.

MATERIALS:

• Sonically sealed Polymethyl-Methacrylate lens / ABS housing

• Volts: 12V DC.

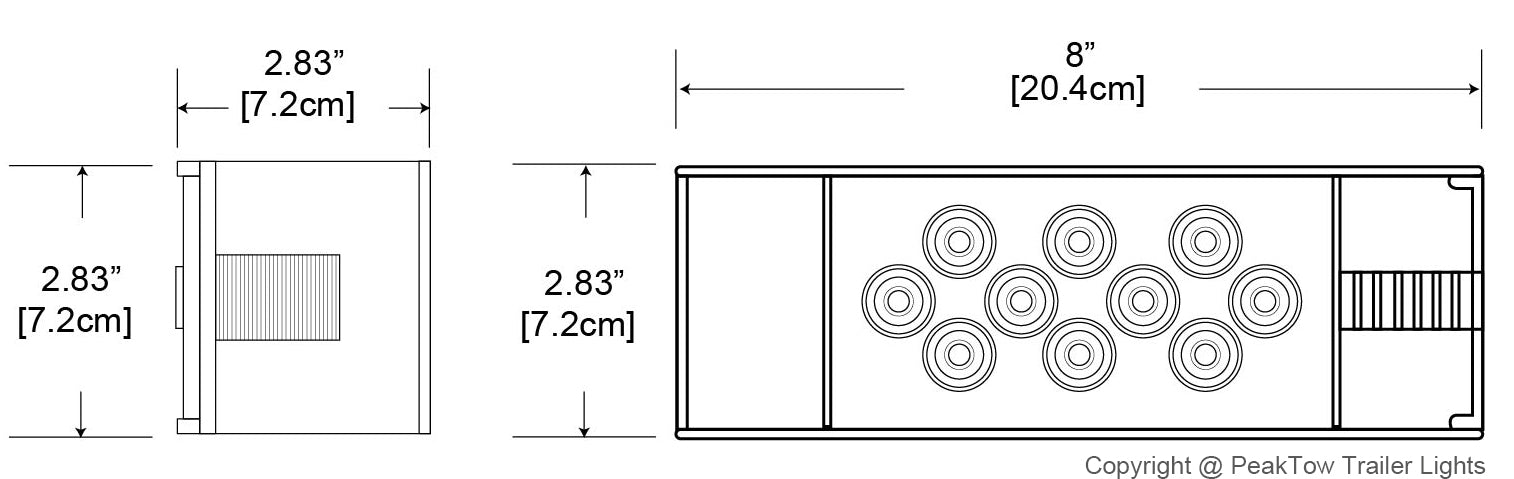

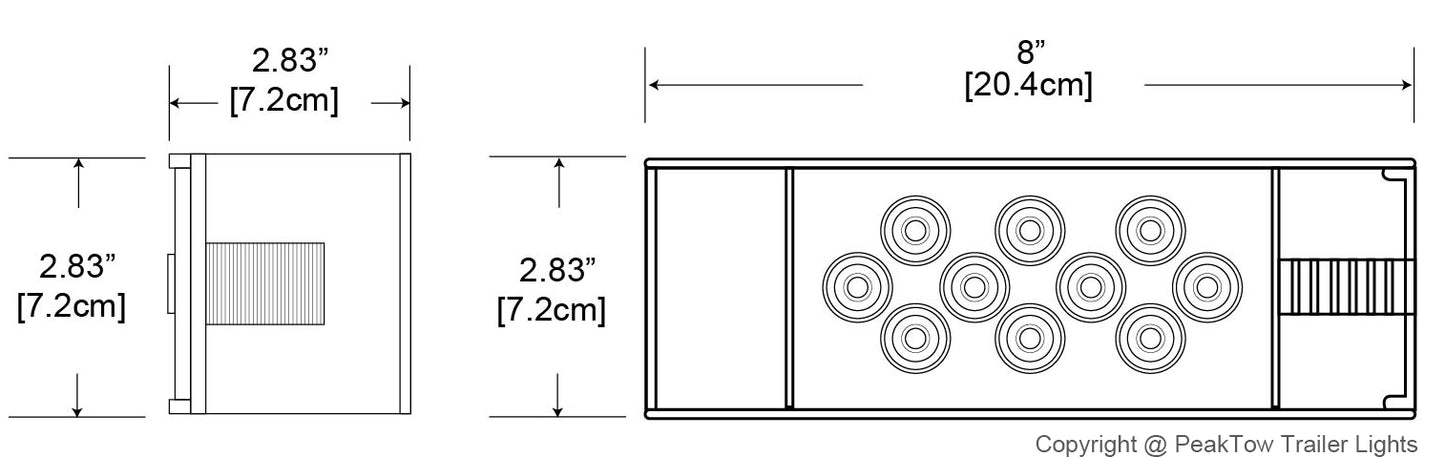

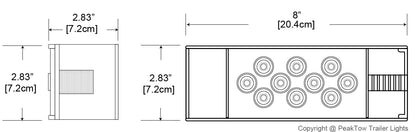

• Package included: 3” x 8” rectangular low profile LED rear combination Stop/Turn/Tail lights, roadside, 1pc. SAE ID code: AIST A2 I6 S2 T2. LED amount: 18 LEDs. 3” x 8” rectangular low profile LED rear combination Stop/Turn/Tail lights, curbside, 1pc. SAE ID code: AIST A2 I6 S2 T2. LED amount: 12 LEDs. 22 + 4 Ft. 4-pole color coded wiring harness, License plate bracket 1pc. Mounting hardware.


NOTE:

• Please Read All Description and Fitment Before Ordering the Product.

• Professionals install is strongly recommended to avoid trouble caused by inexperienced installer!


Six months limited quality warranty. We are Canadian Company. If you have any questions, comments, or issues, please contact us through email: info@peaktow.com. Our Canada-based customer service representatives are always happy to assist, and we stand behind our products with a CONFIDENT 100% MONEY-BACK HAPPINESS GUARANTEE!
