PTL0101 Deluxe 12V LED Submersible Trailer Light Kit - case of 12
PTL0101 Deluxe 12V LED Submersible Trailer Light Kit - case of 12
Couldn't load pickup availability
Need only one? Find us on Amazon.

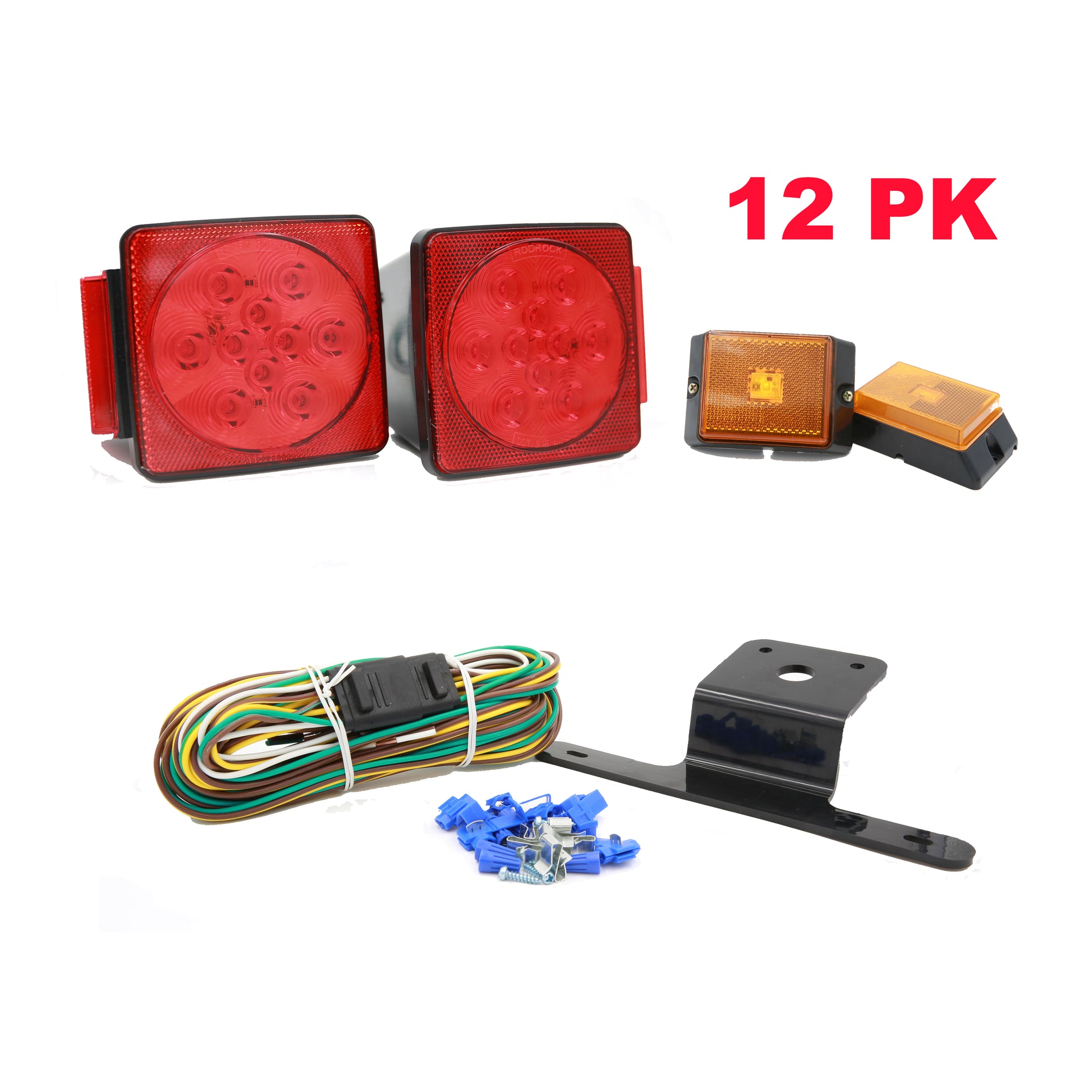

Case of 12 light kits. Each kit includes: 2-Stop/Turn/Tail lights, 2-Side markers, 26 ft 4-pole color coded wiring harness, license plate bracket, and mounting hardware.
FEATURES:
- DOT compliant
- SMD LED lens which gives even better performance than traditional eagle eye LED, extremely bright
- Waterproof and submersible (tested before shipment)
- Compatibility: trucks, trailer, boat trailer, travel trailer, camper, RV, motorhome
- Color: red (tail light), amber (side marker)
- No screws on the surface
- No rust risk in the future
- Automatic modular production without hand placing and welding diodes improves quality
- Low consumption, high energy, long life
- Great for marine or trailer applications
- Withstand vibration, wet conditions, and movement
Light kits are for trailers under 80 inches in width. All Reflectors are made by Canadian mould (super bright).
- 3 wires connection system for each tail light
- 1 wire connection system for each side marker light
- Yellow wire: driver side stop/turn signal
- Green wire: passenger side stop/turn signal
- Brown wire: tail lamp, marker, clearance & license
- White wire: ground (not applicable to lights are self-grounding)
Testing procedure: 10 lights placed underwater for 3 hours, 3 times per day for total 7 days. All the results were positive. The lights are 100% waterproof and submersible.
Please ensure wires connect properly and no electronic short before marine and underwater usage.
MATERIALS:
- Sonically sealed Polymethyl-Methacrylate lens / ABS housing
- Volts: 12V DC.

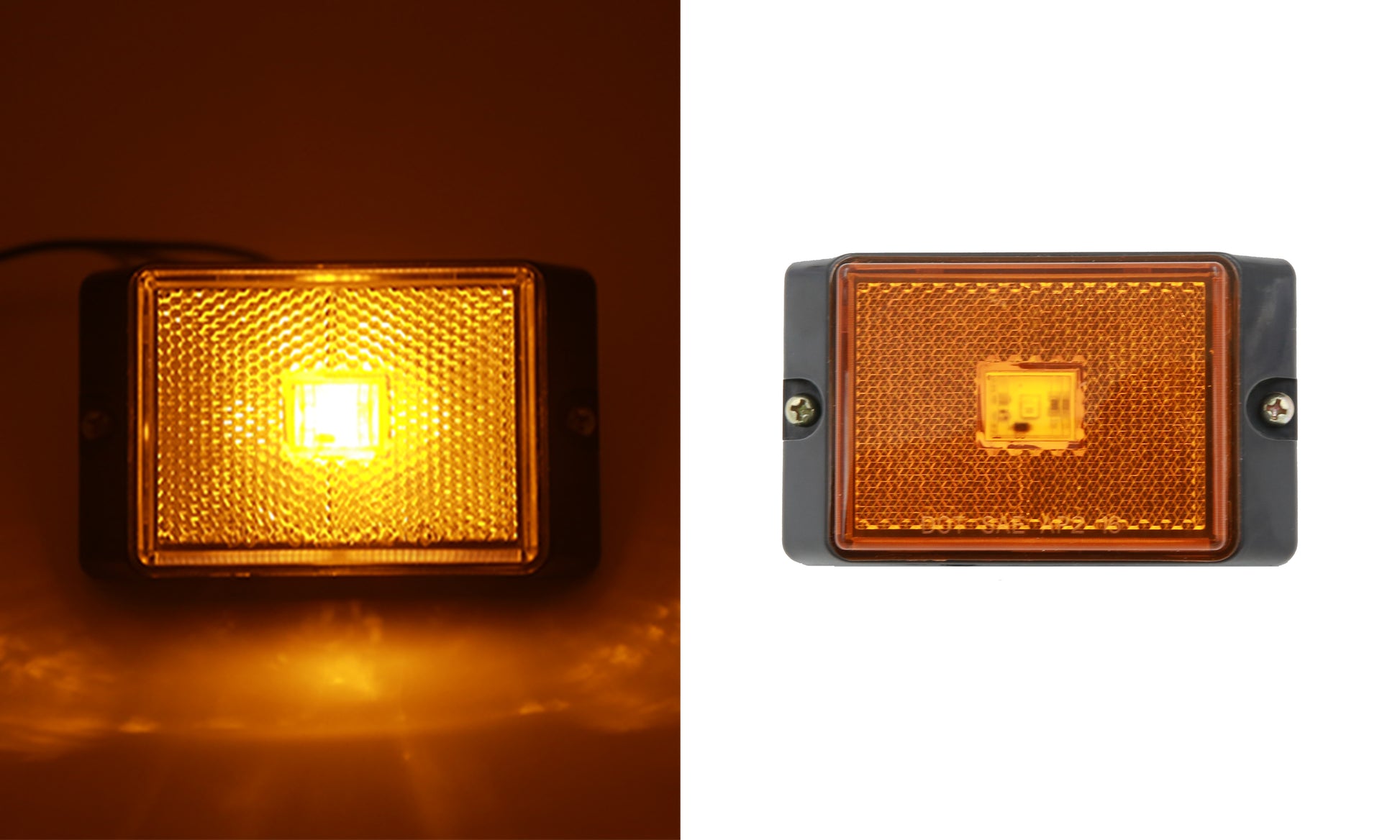

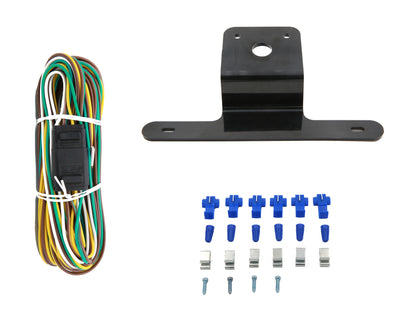

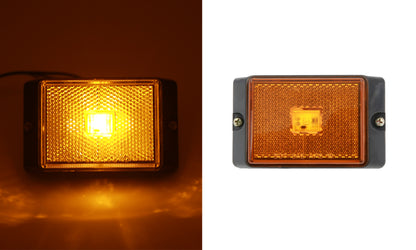

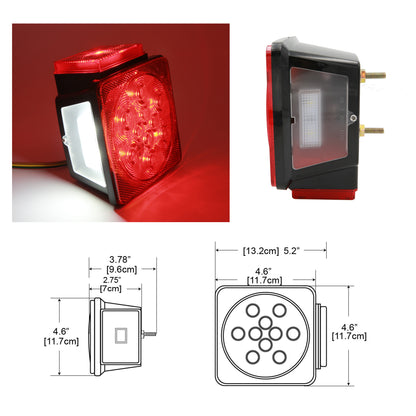

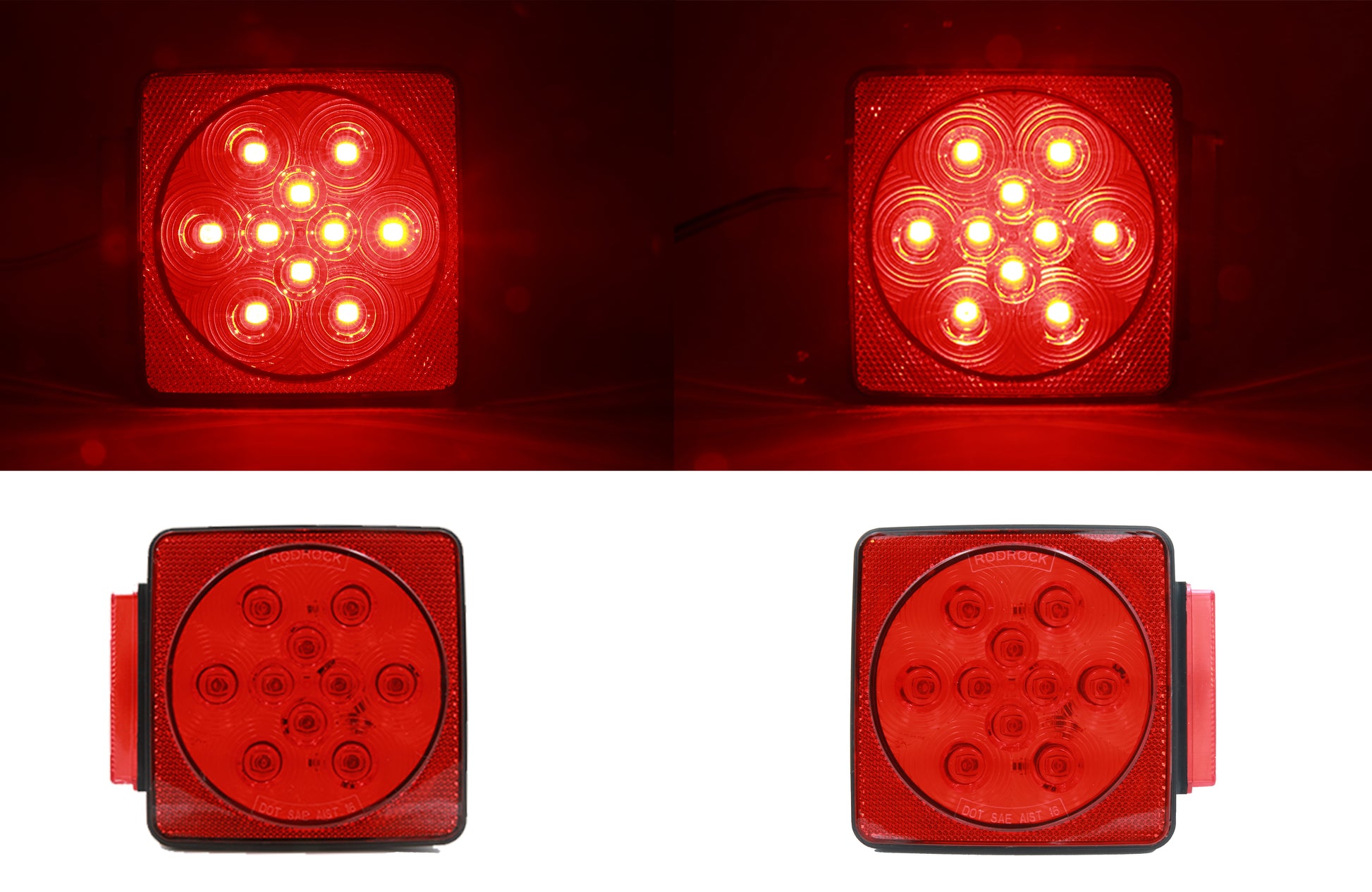

- Package includes: 4” rear combination Stop/Turn/Tail lights, roadside, 1pc.SAE ID code: AIST AP2 L. LED amount: 12 LEDs. 4” rear combination Stop/Turn/Tail lights, curbside, 1pc. SAE ID code: AIST AP2. LED amount: 11 LEDs. 2” rectangular amber side marker clearance light. 2pcs. SAE ID code: AP2. LED amount: 1 LED each. 22 + 4 Ft. 4-pole color coded wiring harness. License plate bracket 1pc. Mounting hardware.
NOTE:
- Please Read All Description and Fitment Before Ordering the Product.
- Professionals install is strongly recommended to avoid trouble caused by inexperienced installer!
Six months limited quality warranty. PeakTow is a Canadian brand. If you have any questions, comments, or issues, please contact us through email: info@peaktow.ca. Our Canada-based customer service representatives are always happy to assist, and we stand behind our products with a CONFIDENT 100% MONEY-BACK HAPPINESS GUARANTEE!
